LED 2-in-1 Matrix Beam Panel

AK Lighting is a manufacturer and supplier of LED 2-in-1 Matrix Beam Panels. This AK Matrix Panel is a dual-layer LED unit that merges professional lighting and HD video in a modular, space-saving design. As a dual-source solution, it delivers powerful long-throw white beams alongside high-brightness video and strobe, all via precise pixel control. Ideal for stages, TV studios, and large events, it offers dynamic configuration flexibility.

Scan the QR Code to Watch Our Product Video

Product Design

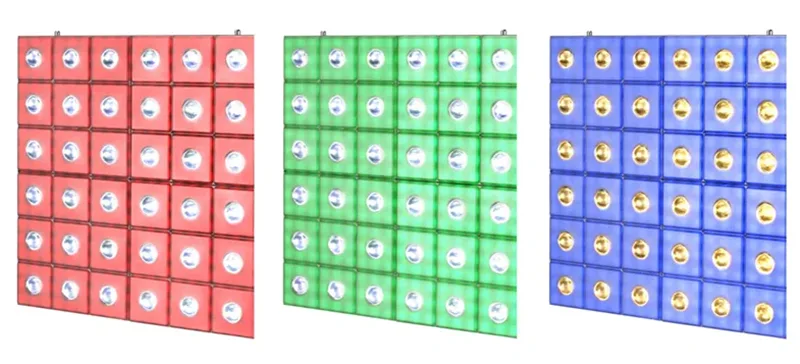

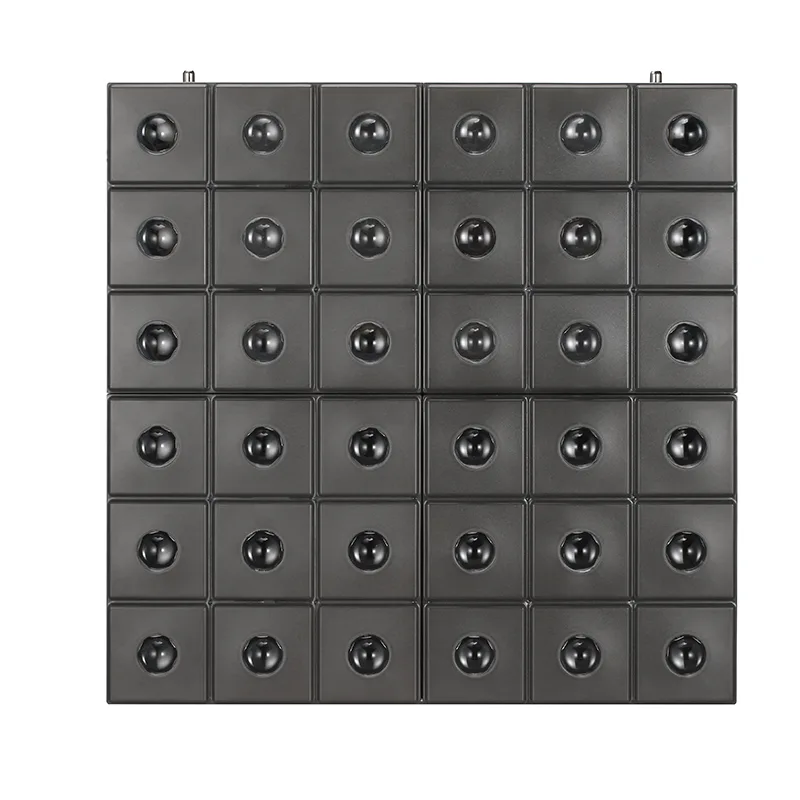

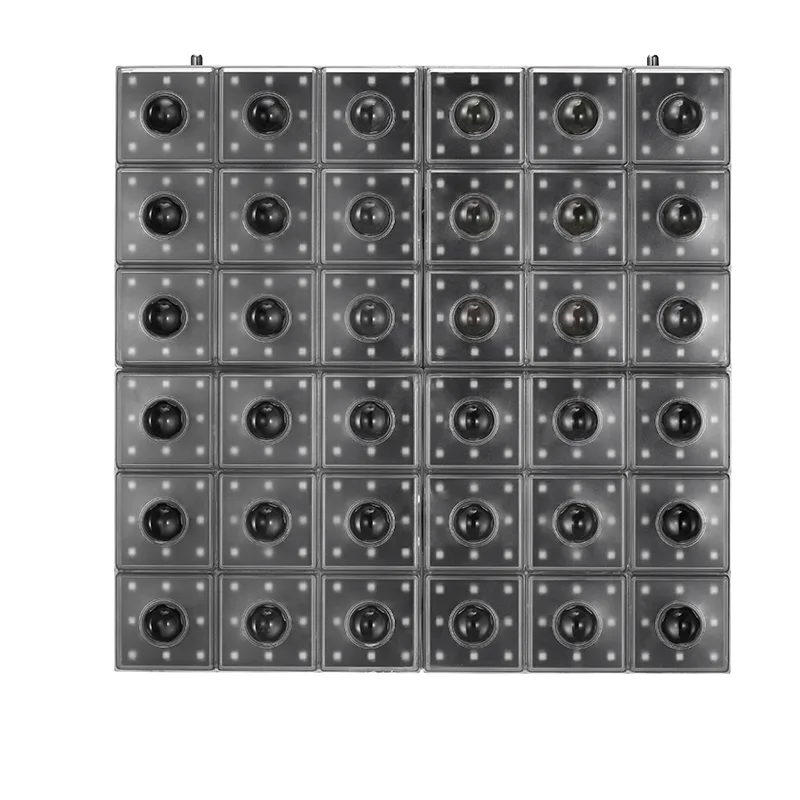

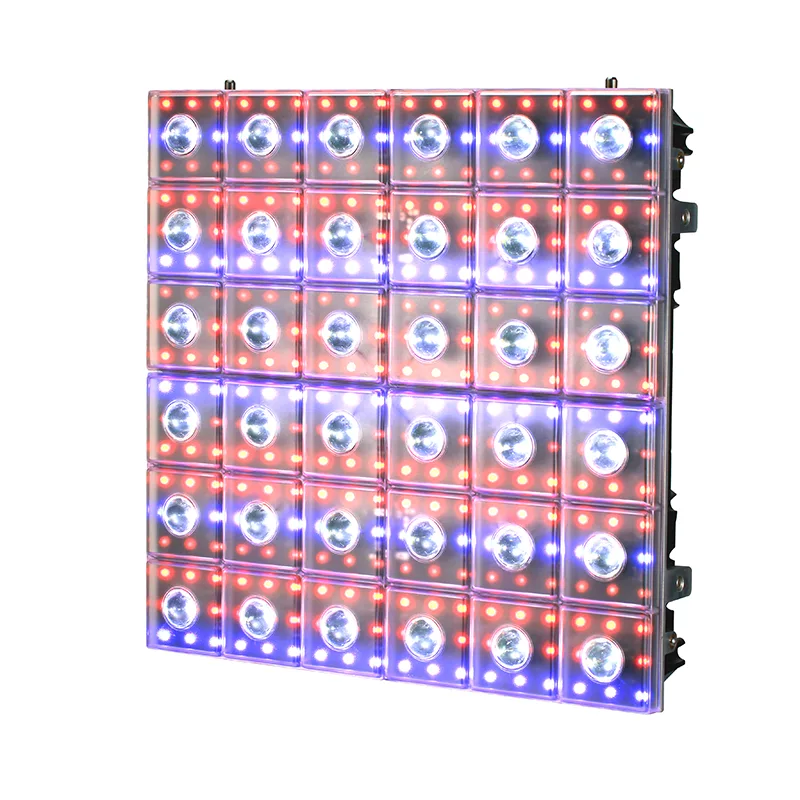

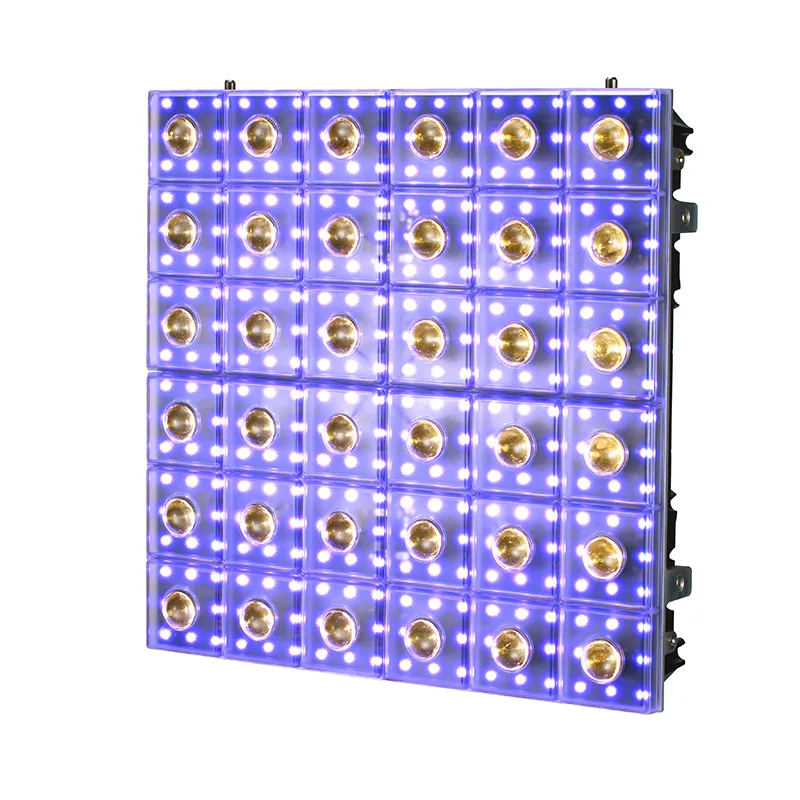

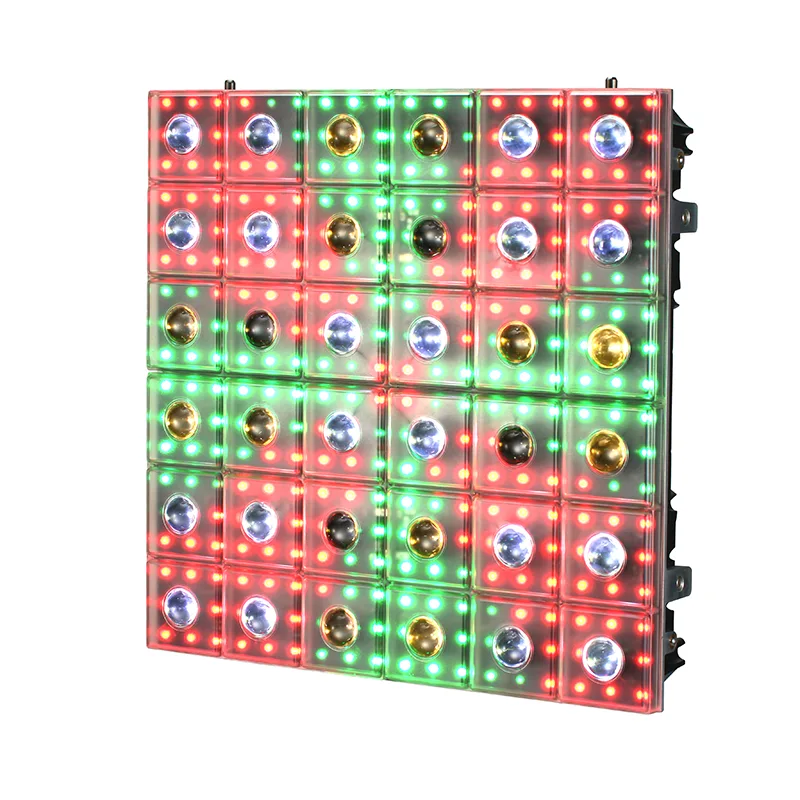

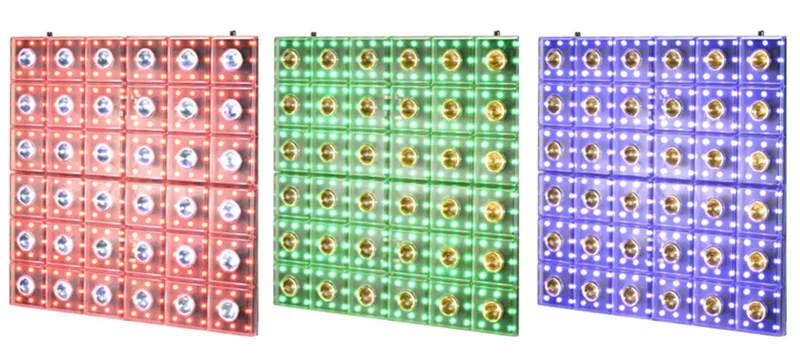

Each 50x50 cm (20x20") building block features two controllable layers. Layer 1 boasts 324 (18x18) RGB-WW+CW pixels with a 120° beam for wide illumination.

Layer 2 features 36 (6x6) dual-white sources (2800K/6000K) with a focused 6° beam. At just 450W, power distribution between layers is fully flexible to prioritize light, video, or a hybrid effect.

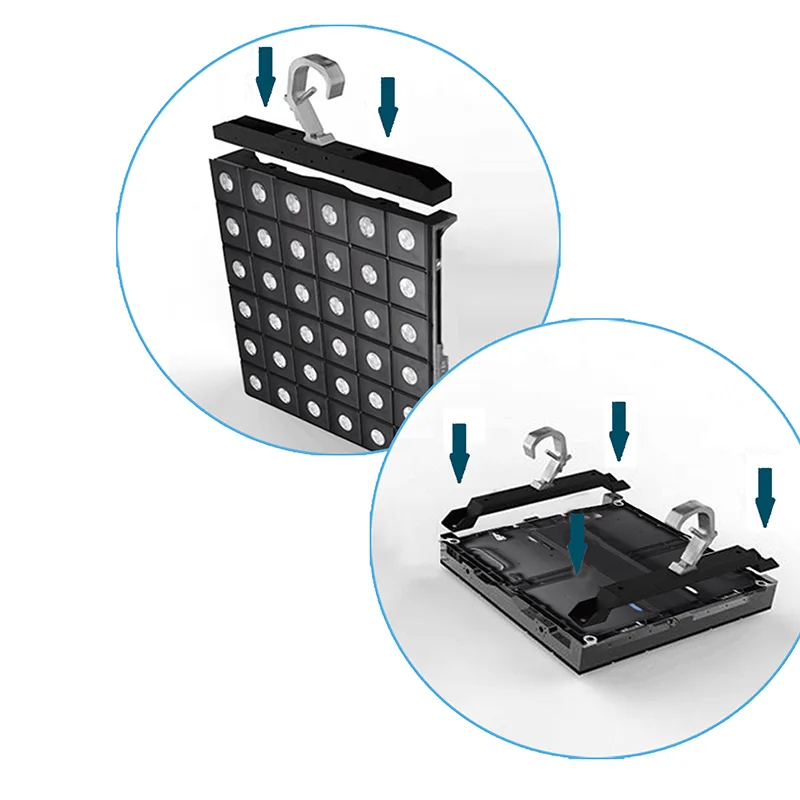

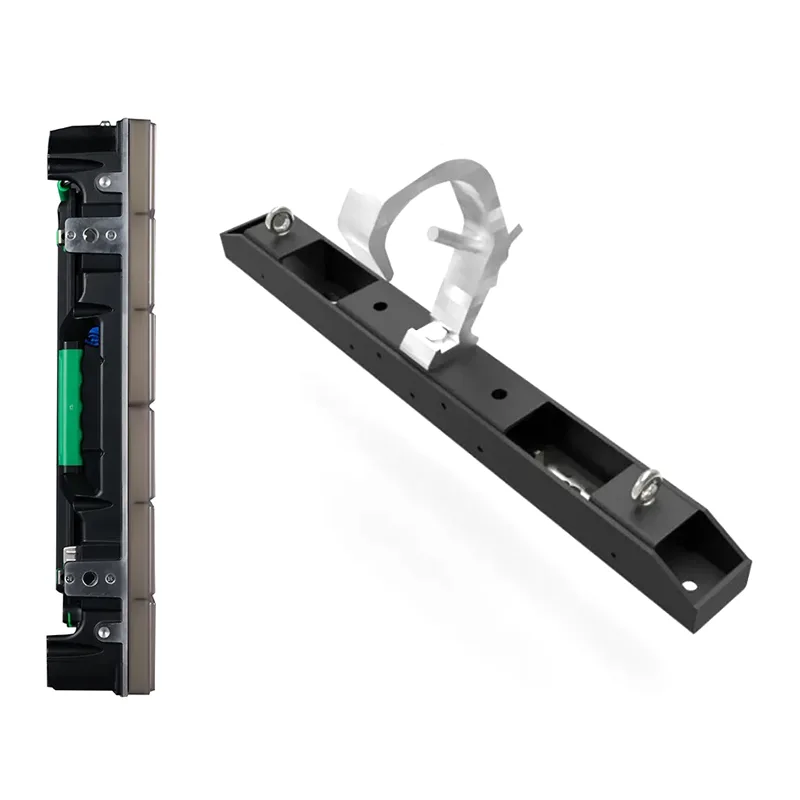

Its modular tile-style frame allows seamless interlocking of multiple units, ensuring consistent pixel pitch and zero visual gaps. Versatile to install, it supports flat mounting, suspension, or ground stacking to suit any venue.

For seamless integration, the LED 2-in-1 Matrix Beam Panel comes with an onboard power supply and intuitive UI. It supports industry-standard protocols (DMX, RDM, Art-Net), delivering unmatched flexibility for any professional setup.

Main Features

Matrix panel with 36 2800K + 6000K, 6° Beams + 288 RGB 3-in-1 pixels

Blending pixel surface with dynamic beams

Allows seamless interlocking of multiple units.

Allows seamlessly spliced with the display screen

Dual systems operate simultaneously: DMX and Art-Net.

Product Specification

Accessories & Related Products

Why Choose This LED 2-in-1 Matrix Beam Panel?

This LED 2-in-1 Matrix Beam Panel from AK Lighting is not merely a lighting fixture; it is a powerful tool for visual expression.

1. Dual-Function Integration

With this single device, you can directly achieve two distinct types of lighting effects:

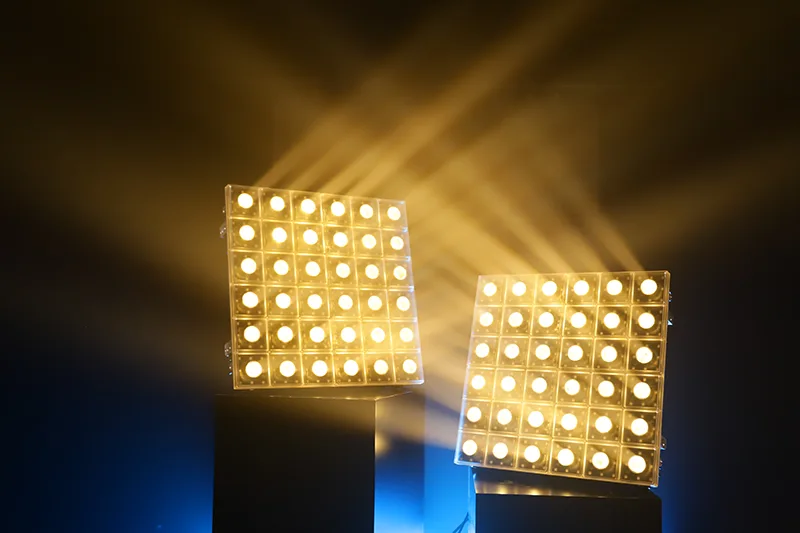

Beam Mode: Delivers high brightness and strong beam penetration, ideal for serving as the primary visual element of a performance.

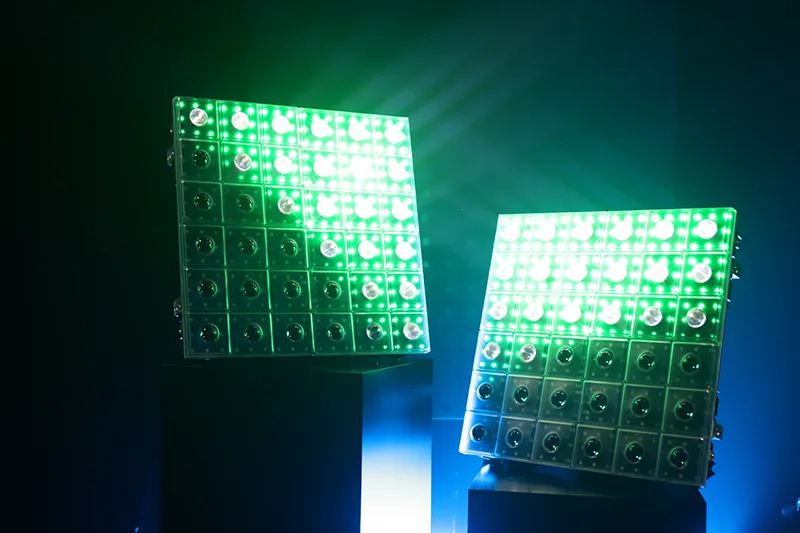

Matrix Mode: Supports the display of patterns, text, and animated effects.

Choosing our product helps you minimize equipment clutter, thereby enhancing stage aesthetics and operational efficiency.

2. Pixel-Level Control System

Every individual LED bead on the panel is independently programmable, enabling the creation of sophisticated visual effects. The system supports pixel mapping and can synchronize with music beats to generate dynamic effects such as chasing lights, waves, gradients, and graphic animations.

3. High Brightness and Uniform Light Output

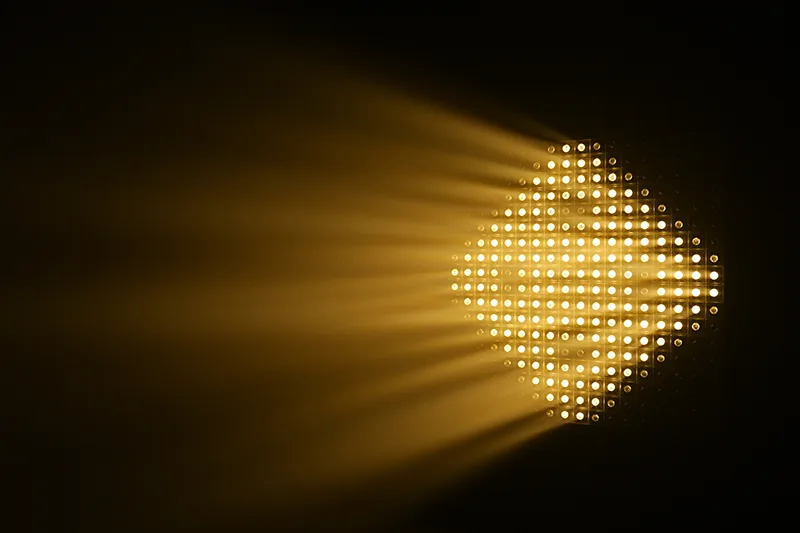

This product guarantees visibility over long distances and delivers significant visual impact. As a high-power LED light source, it produces concentrated beams with strong penetration and a uniform light spot—free from noticeable dark zones—making it suitable even for large-scale venues.

4. Modular Design for Flexible Assembly

The units can be freely combined to suit your specific stage layout and adapt to various structural configurations. It is highly recommended for use in background walls, stage frameworks, cycloramas, and similar applications, facilitating the construction of creative and unique stage designs.

5. Comprehensive Control System Compatibility

It integrates seamlessly with mainstream stage control solutions, interfacing easily with professional lighting consoles and media servers. With flexible operation and a low learning curve, this AK Lighting product offers exceptional compatibility across a wide range of projects.
