LED Dual-Layer RGB Matrix Beam Panel

The LED Dual-Layer RGB Matrix Beam Panel is one of the LED effects lighting products offered by AK Lighting. As a professional manufacturer, we provide reliable solutions for stage visuals; featuring a wide spectrum of colors and powerful expressive capabilities, the lighting can synchronize with musical rhythms to enhance the immersive experience.

What is our LED Dual-Layer RGB Matrix Beam Panel?

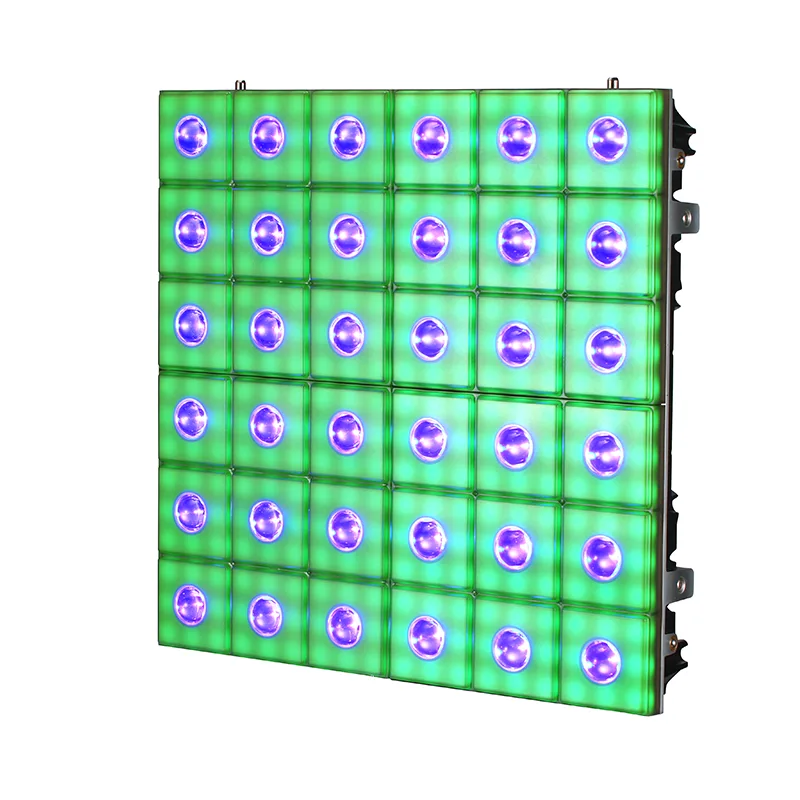

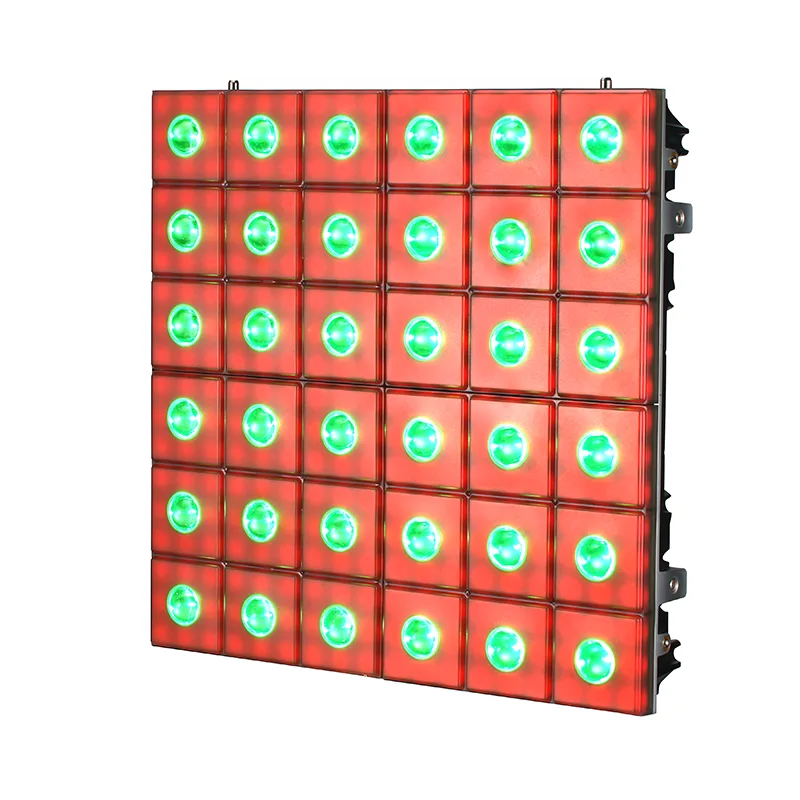

The LED Dual-Layer RGB Matrix Beam Panel is a modular, dual-layer LED matrix fixture designed and manufactured by AK Lighting, seamlessly integrating both lighting and video display capabilities.As a dual-source device, it delivers high-power, long-throw beams, high-brightness video display effects, and strobe effects, while supporting full pixel-level control—making it ideal for professional stage performances and television studio applications.

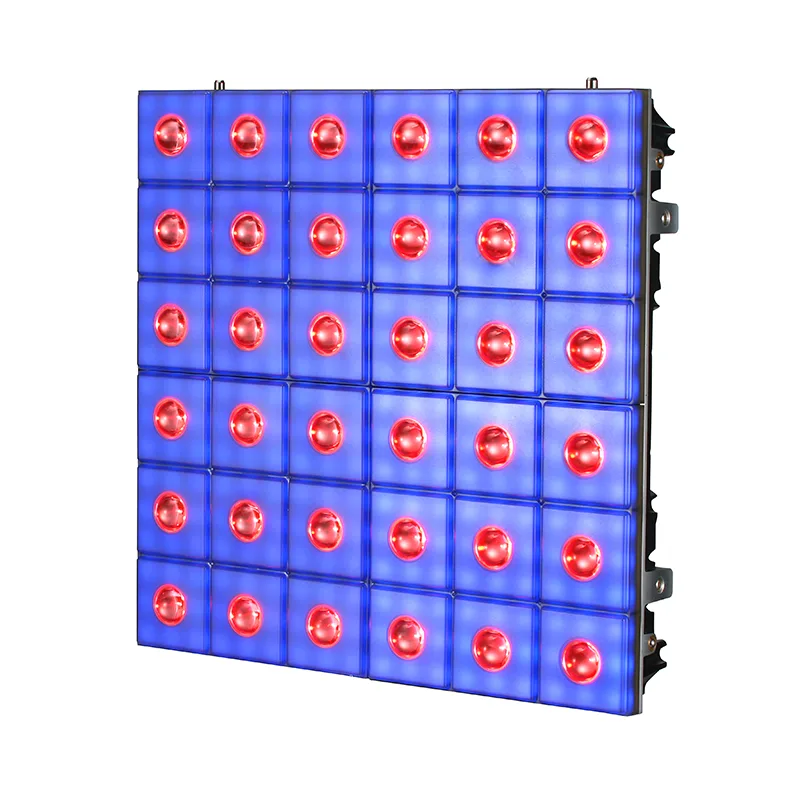

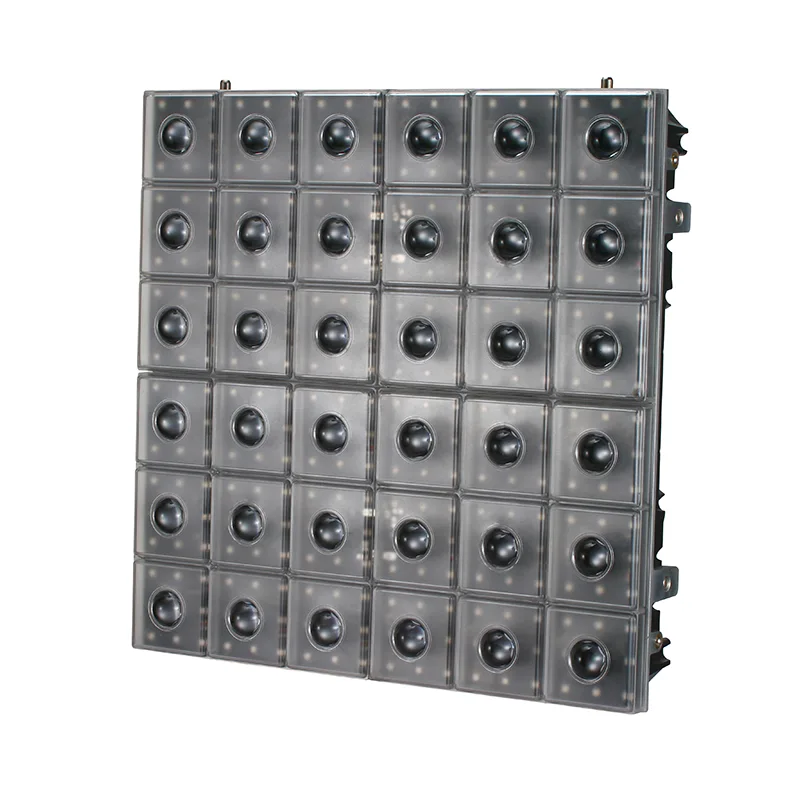

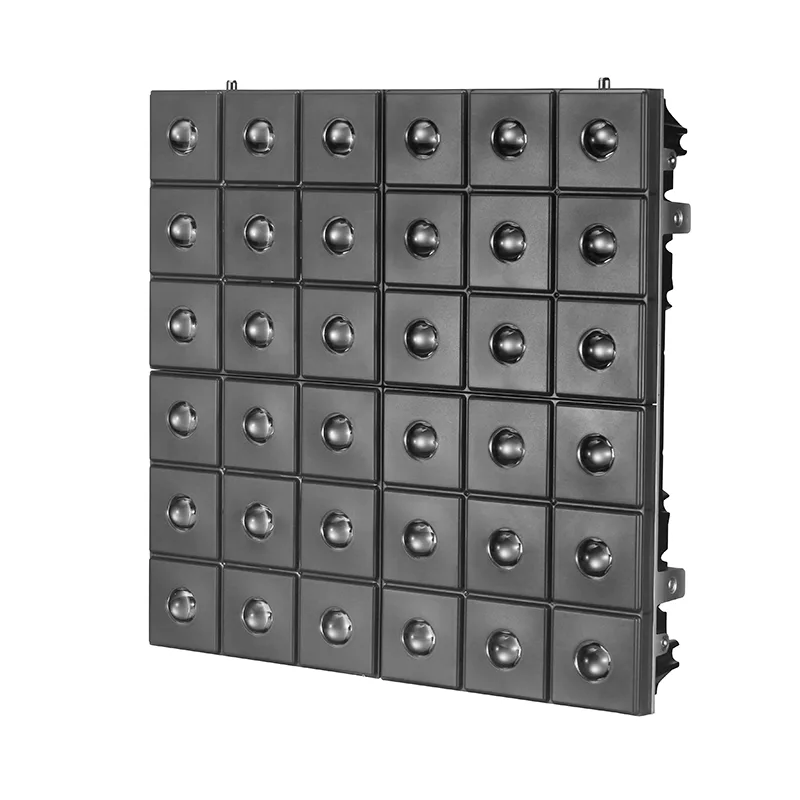

Each unit of the fixture consists of a 50x50 cm (20x20 inch) modular component, housing two independent layers of light sources:

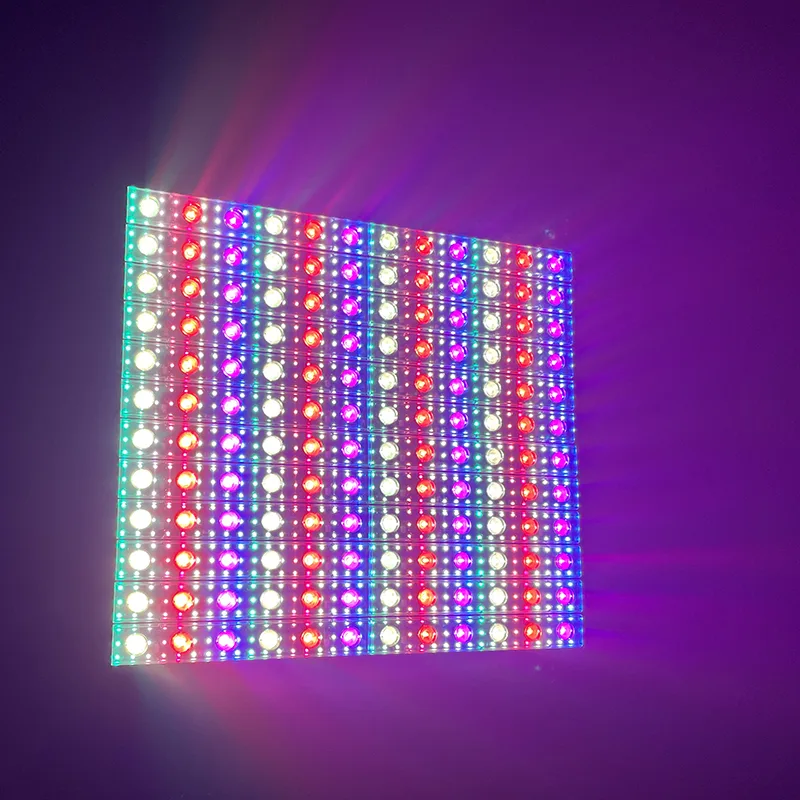

Layer 1: Composed of 324 RGB pixels (arranged in an 18x18 grid) with a 120° beam angle.

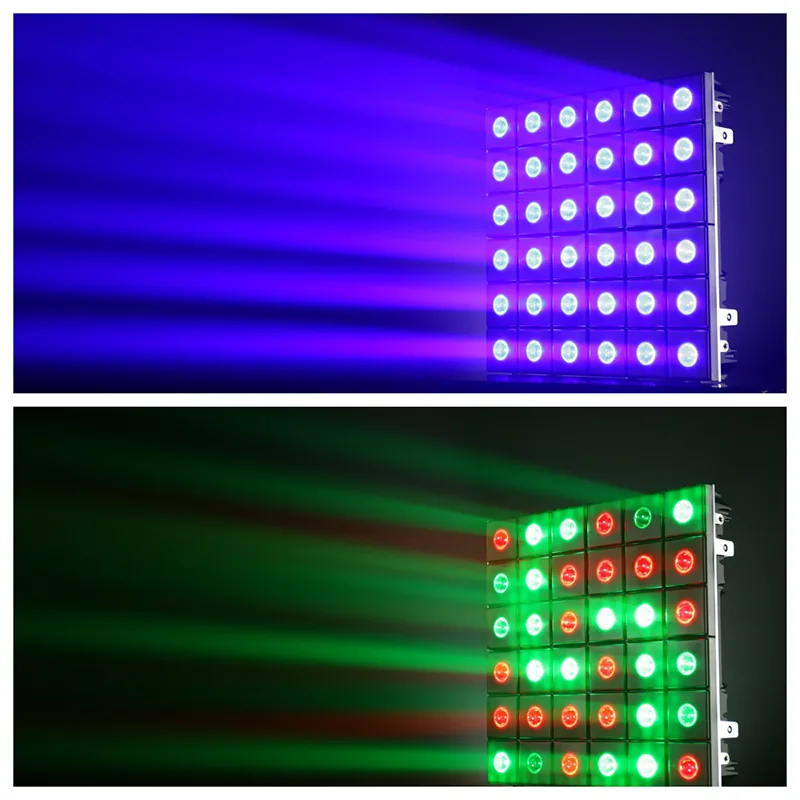

Layer 2: Composed of 36 RGB 3-in-1 pixels (arranged in a 6x6 grid) with a 6° beam angle.

The device boasts a total power output of up to 450W, with flexible power distribution capabilities between the two light source layers. Each individual light-emitting unit supports independent pixel-level control, enabling the simultaneous display of video imagery on either a single layer or both layers combined.

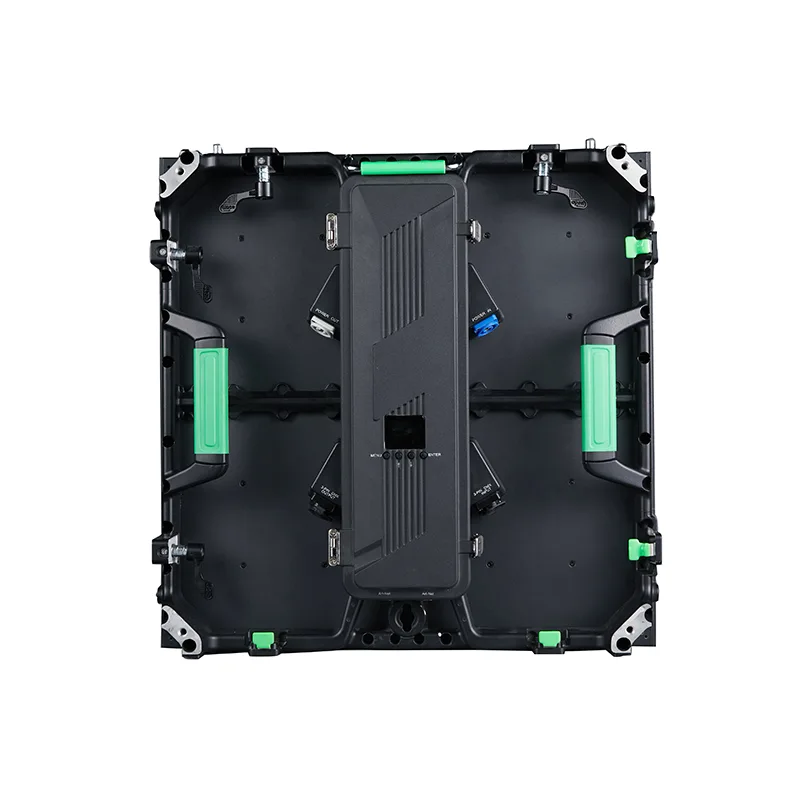

Featuring an integrated power supply and user interface, the device offers comprehensive support for various lighting control protocols—including DMX, RDM, and Art-Net—providing exceptional flexibility and convenience for a wide range of professional applications.

You Can Also Scan the QR Code to Watch Our Product Video

LED Dual-Layer RGB Matrix Beam Panel vs. Standard Matrix Beam Panel: Key Differences

Main Features

Matrix panel with 36 RGB 3IN1, 6° Beams + 288 RGB 3IN1 pixels

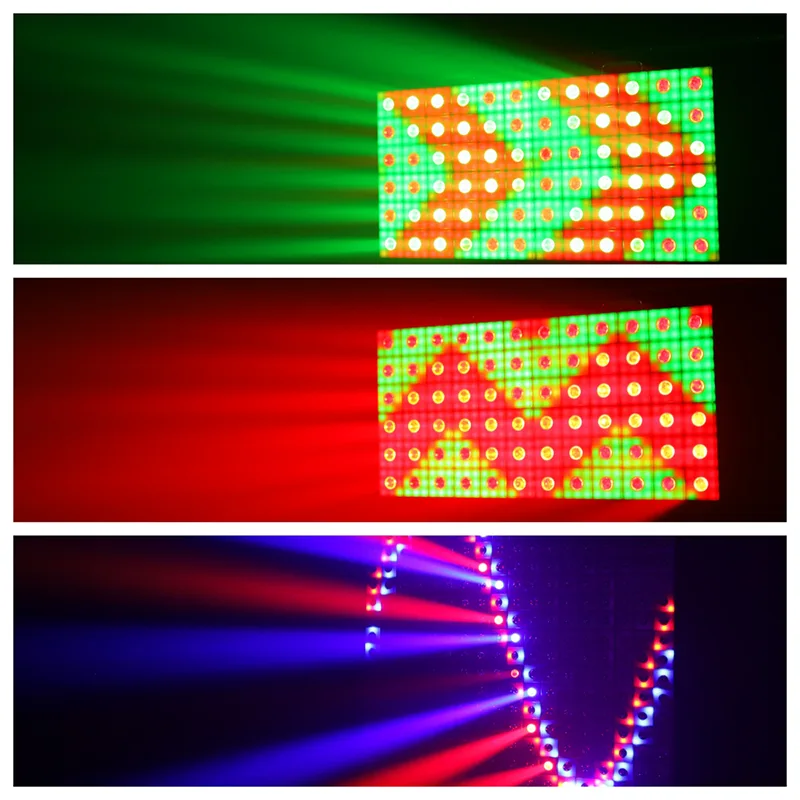

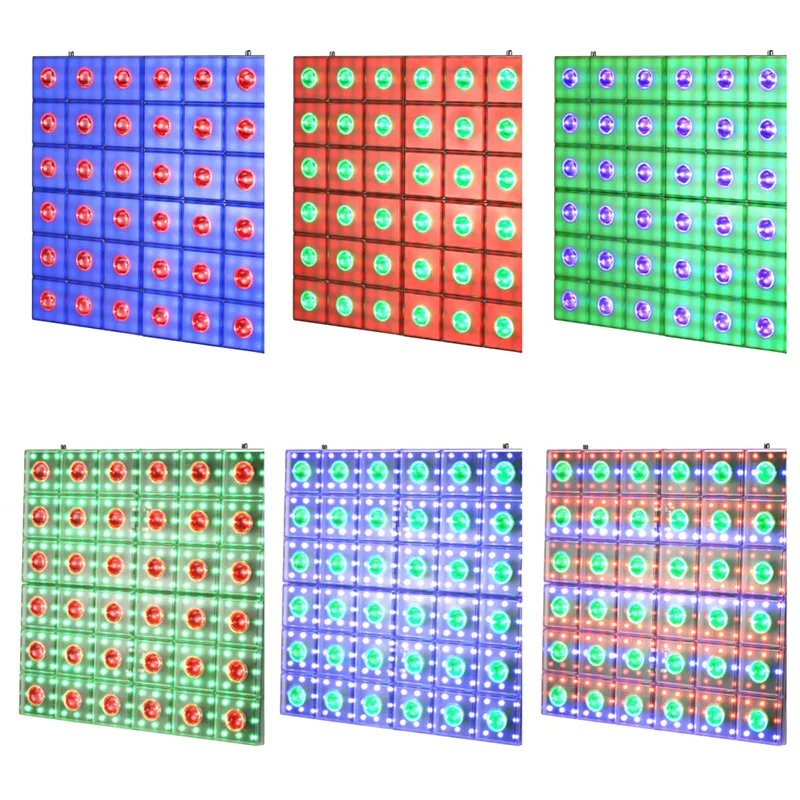

Blending pixel surface with dynamic beams

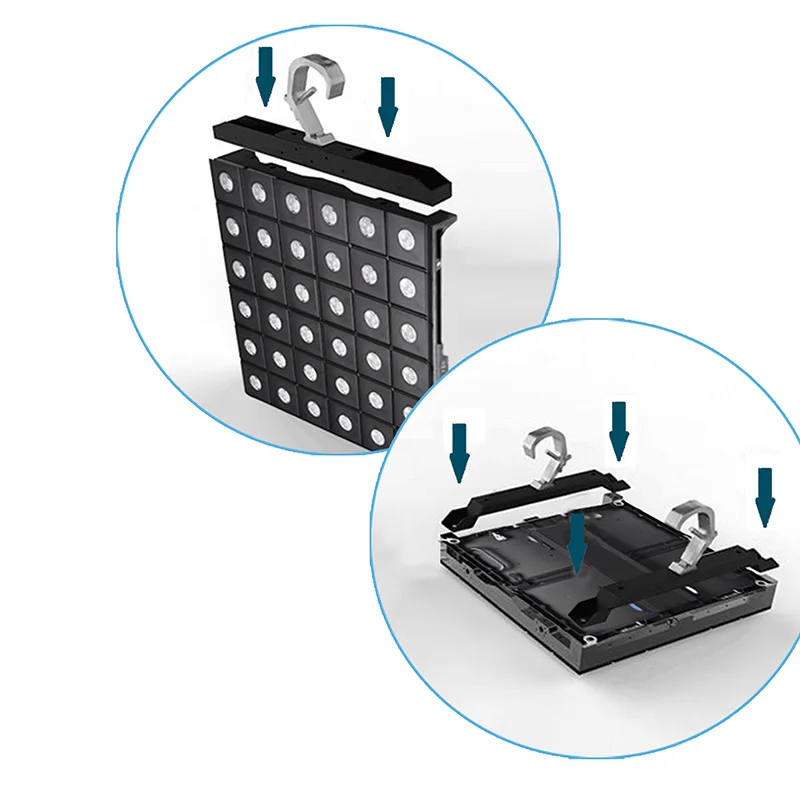

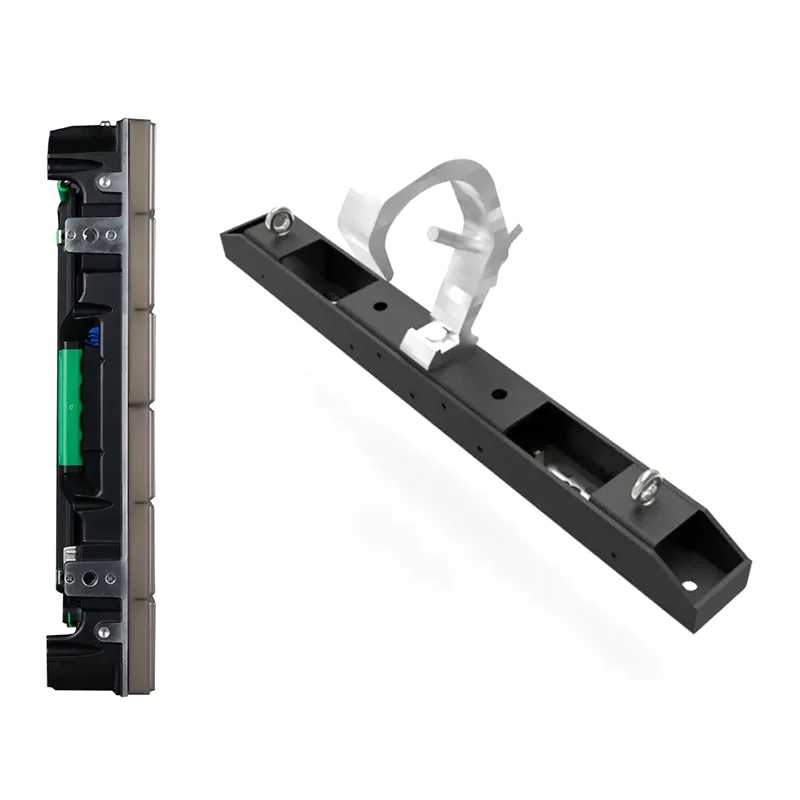

Allows seamless interlocking of multiple units.

Allows seamlessly spliced with the display screen

Dual systems operate simultaneously: DMX and Art-Net.

Product Specification

For Which Applications Do We Recommend the LED Dual-Layer RGB Matrix Beam Panel?

As a professional manufacturer of LED stage lighting, AK Lighting has collaborated on numerous domestic and international projects. Regarding this specific product—while it may not be a requirement for every project—we highly recommend it for those with demanding specifications.

1. Project Owners with Specific Visual Requirements

If your project demands striking visual impact rather than mere functional illumination, our AK-MFC66 model is the ideal choice. We recommend it to concert and music festival organizers, large-scale stage production companies, and stage design teams.

2. Operators of High-End Entertainment Venues

Beyond professional stages, we frequently partner with venues such as nightclubs, bars, and live music houses—spaces that require immersive entertainment environments to consistently attract patrons and enhance the customer experience.

3. Managers of Brand Events and Commercial Projects

Brand launch events, commercial functions, trade shows, pop-up installations, and digital showrooms all require exceptional on-site aesthetics, as well as strong visual appeal for photography and social media sharing; high-quality effect lighting is therefore indispensable.

4. Lighting Contractors / System Integrators

Are you looking for differentiated products to boost your project's competitive edge? Choose us as your supplier. We offer direct-from-factory sales and can provide customized solutions tailored to your specific needs, helping you increase your success rate in securing project bids.
