Art-Net to DMX Converter IP

When you contact AK Lighting to embark on the design of a brand-new outdoor stage lighting system, we offer a comprehensive, one-stop solution—including our Art-Net to DMX Converter IP. These products are compatible with mainstream lighting control software and equipment, and can be deployed directly outdoors without the need for custom-fabricated waterproof enclosures.

Product Feature

Water-resistant Node 8 professional lighting network router: Art-Net to DMX512 converter with 4,096 CAT5 channels, built-in network switch (Ethernet repeater), 8 configurable DMX512 I/O channels, and high-performance signal amplification. Easy setup via graphical display/front panel or remote web access; suitable for indoor/outdoor events.

Product Configuration

● Distributes Art-Net data to 8 DMX512 universes (4096 channels)

● Parallel DMX input possible (1024 channels)

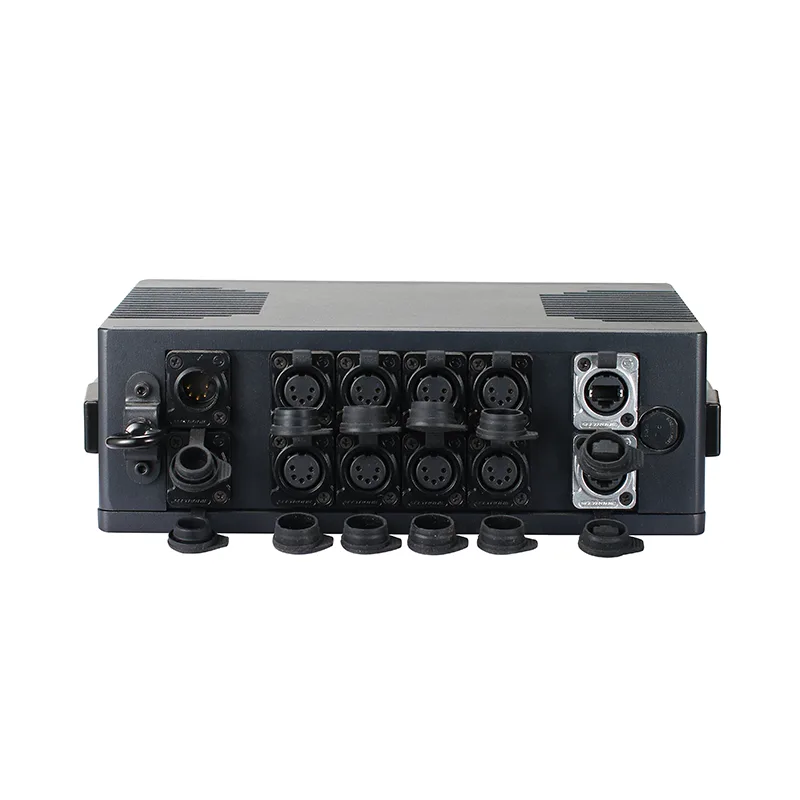

● 8 optically isolated XLR plugs (3-pin) for DMX output

● 2 XLR (3-pin) for DMX input

● Variable data routing capabilities for all DMX outputs

● 1 x powercon in/through port

● Serial connection possible

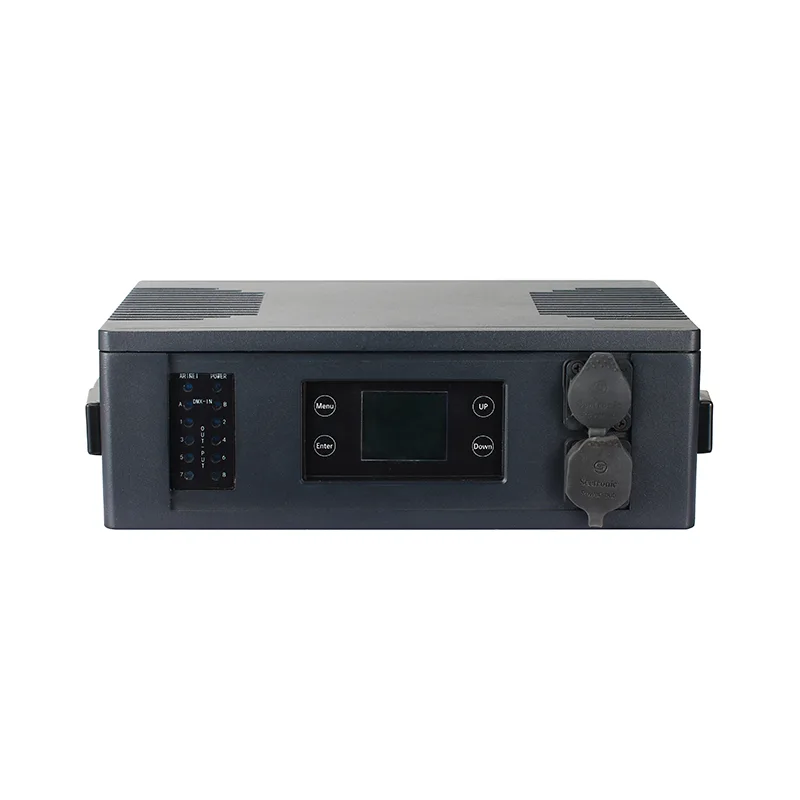

● User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)

● LED indication for functions

● DMX Splitter / DMX Booster operation possible

Why is an IP65 rating crucial for lighting control equipment?

Traditional Art-Net converters typically require installation within expensive, waterproof distribution boxes—enclosures prone to heat buildup and internal condensation. The Art-Net to DMX Converter IP, however, features a fully sealed, die-cast aluminum housing; this design allows it to operate reliably even when directly exposed to the elements, while simultaneously offering superior heat dissipation efficiency.

In terms of interface design, we have moved away from fragile RJ45 connectors and standard XLR ports. Instead, the unit is equipped with waterproof aviation-grade power connectors (featuring protective sealing caps) and waterproof data interfaces, ensuring that physical connections remain free from short circuits—even during torrential downpours.

You can mount the converter directly onto the truss structures of outdoor stages or secure it to brackets on building facades. This approach minimizes the required length of DMX signal cables, thereby significantly reducing the risk of electromagnetic interference affecting the signal.

Application Scenarios

The Art-Net to DMX Converter (IP-rated) is designed to operate stably over long periods in outdoor or humid environments, thereby reducing maintenance costs. Its practical applications extend far beyond just live performances.

1. Large-Scale Outdoor Architectural Lighting & Building Facade Shows

The converter can be mounted directly onto building facades, rooftops, or landscape light poles to control dynamic building fronts composed of thousands of individual pixel points. It supports remote status feedback, allowing users to monitor the device's operational status from the ground—even if the unit is mounted on a skyscraper hundreds of meters high.

Problem Solved: Traditional indoor converters require installation inside bulky, waterproof electrical cabinets; however, these enclosures are prone to internal heat accumulation and condensation. The IP65-rated converter features built-in heat dissipation and waterproofing capabilities, simplifying installation and cabling while significantly reducing long-term maintenance costs.

2. Outdoor Music Festivals & Live Scenic Performances

We have collaborated extensively on projects of this nature. Given the unpredictable weather conditions inherent to outdoor events, stages are often constructed on a temporary basis. This control device can be mounted directly onto the truss structures of open-air stages—remaining fully exposed to wind and rain—to drive high-power waterproof wall washers, beam lights, or 3D pixel arrays.

Problem Solved: Eliminates the risk of the lighting control system failing due to sudden heavy downpours.

3. Theme Parks & Immersive Nighttime Experiences

These venues typically cover vast areas and involve lighting synchronization projects with widely distributed fixtures located at significant distances from one another. Signals are transmitted from a central control room—via fiber optics or Ethernet cables—to IP65 converters situated at various scenic spots; these converters then locally drive the surrounding landscape lighting fixtures.

Problem Solved: Resolves the issue of DMX signal attenuation over long transmission distances. The converters can be discreetly concealed within landscaped areas, rockeries, or trees, eliminating the need to construct additional waterproof equipment cabinets and thereby preserving the aesthetic integrity of the scenic environment.

FAQ

Q: Since it is rated IP65, can I submerge it in water during use?

A: No. The IP65 rating signifies protection against water jets and heavy rain. For the vast majority of outdoor performances and architectural lighting applications, IP65 protection is more than sufficient.

Q: Are there any special installation requirements?

A: Although the unit is waterproof, we recommend positioning the connectors facing downward during installation. This allows gravity to naturally drain away any accumulated water, preventing moisture from lingering around the sealing gaskets for extended periods.

Q: Are these waterproof connectors compatible with standard cables?

A: You must use the specialized cables provided by AK Lighting. If you attempt to connect a standard DMX cable directly, water may ingress at the connection point—even though the fixture itself is waterproof—potentially causing signal flickering or even circuit damage.
